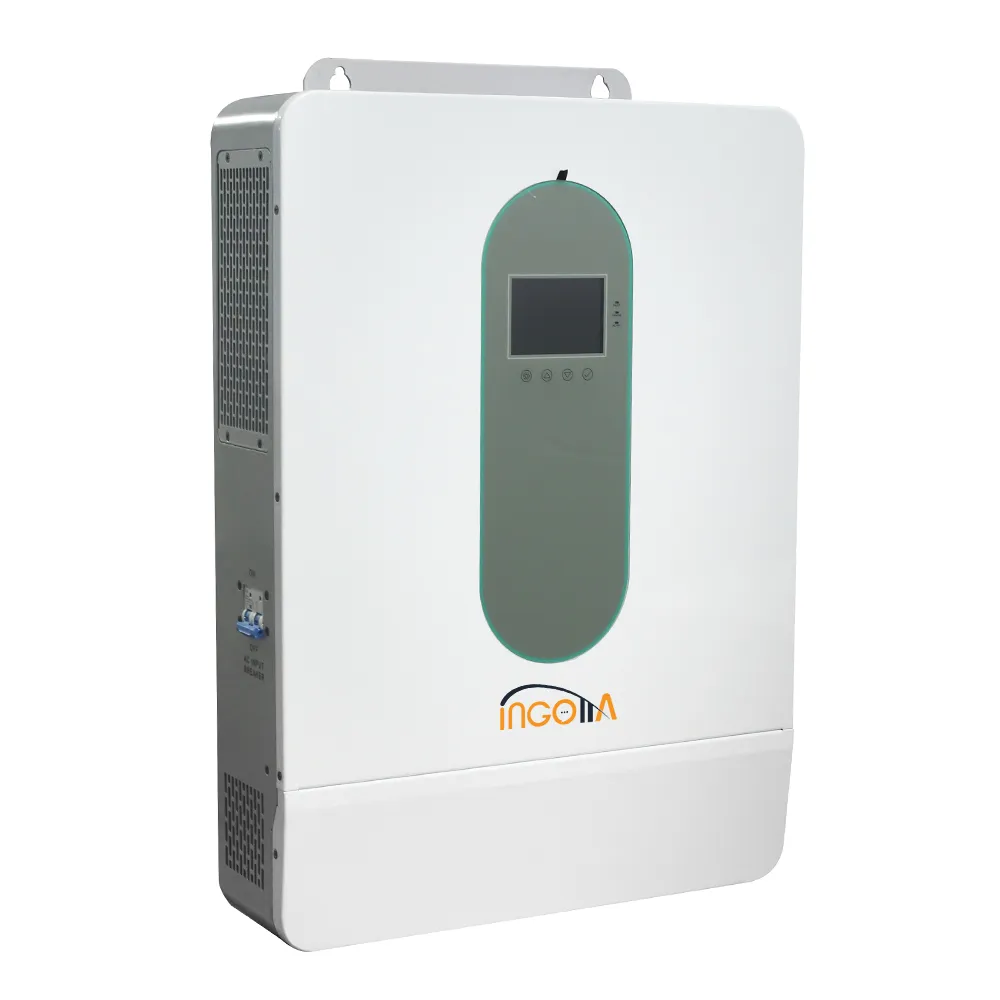

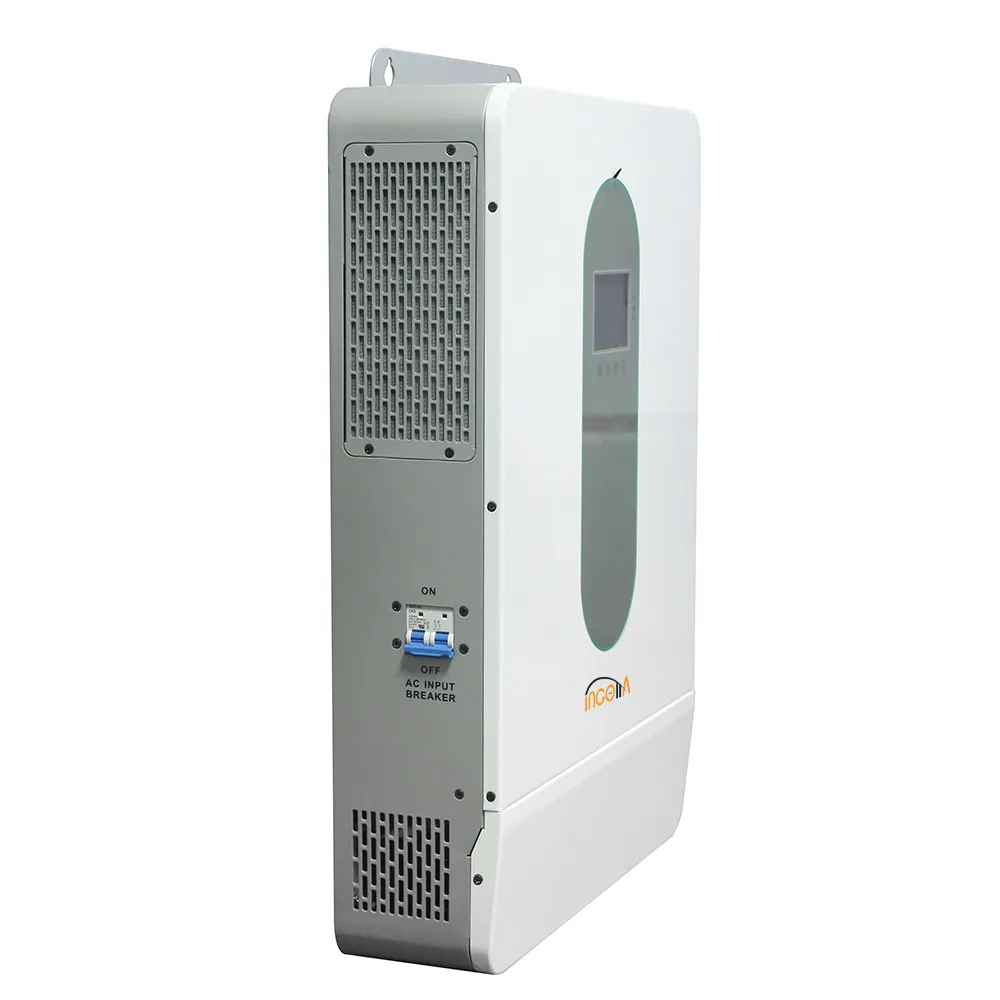

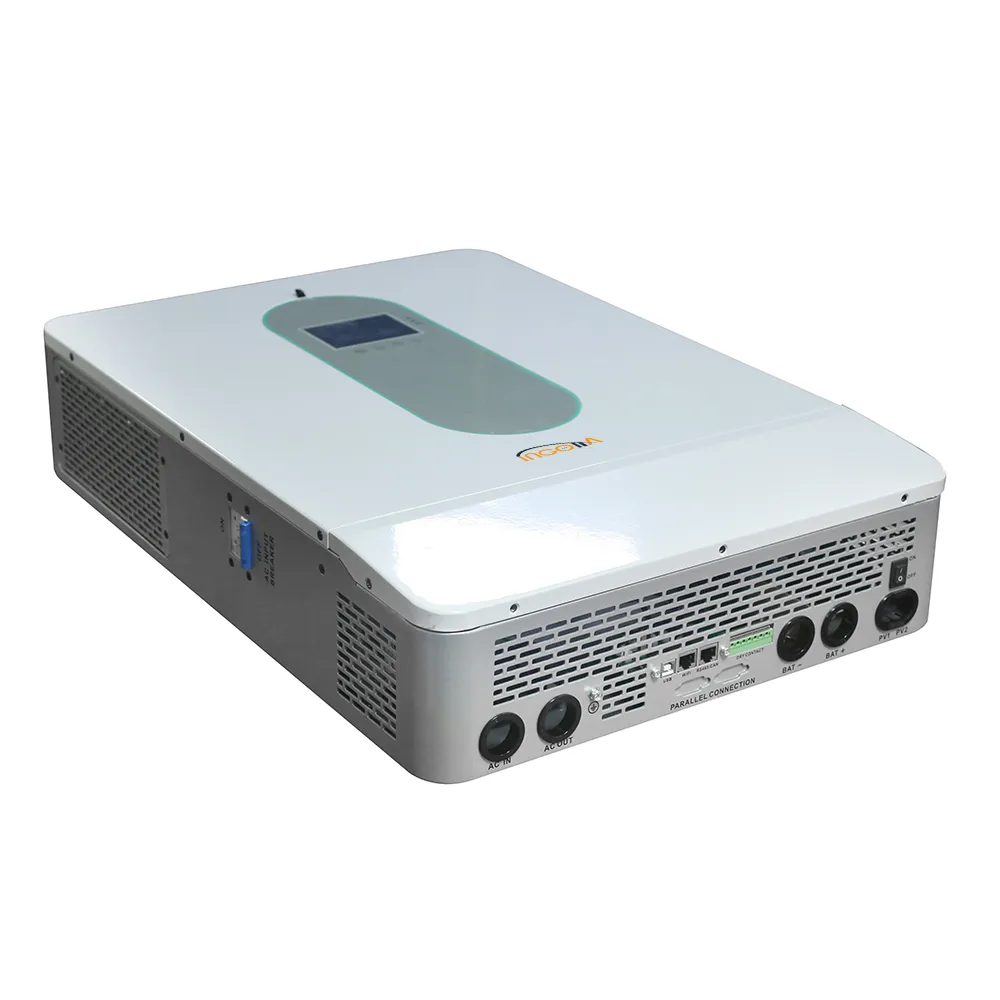

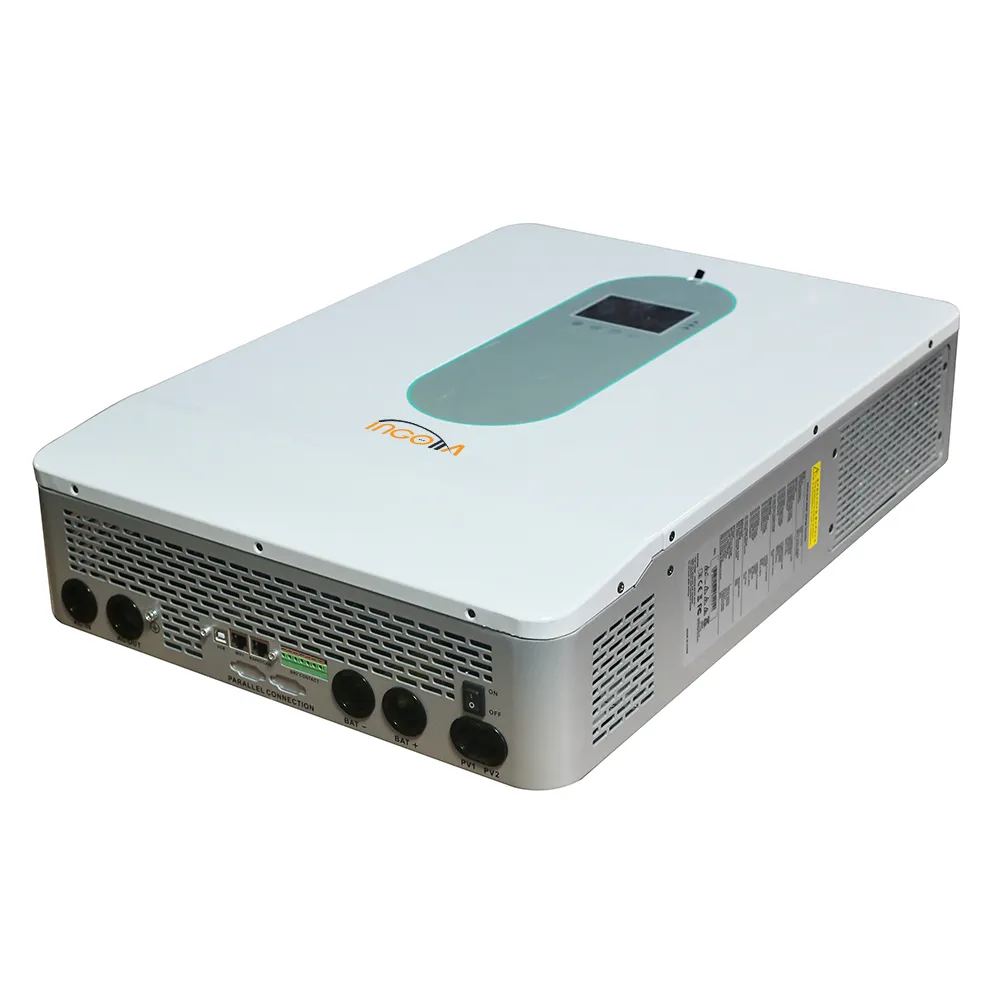

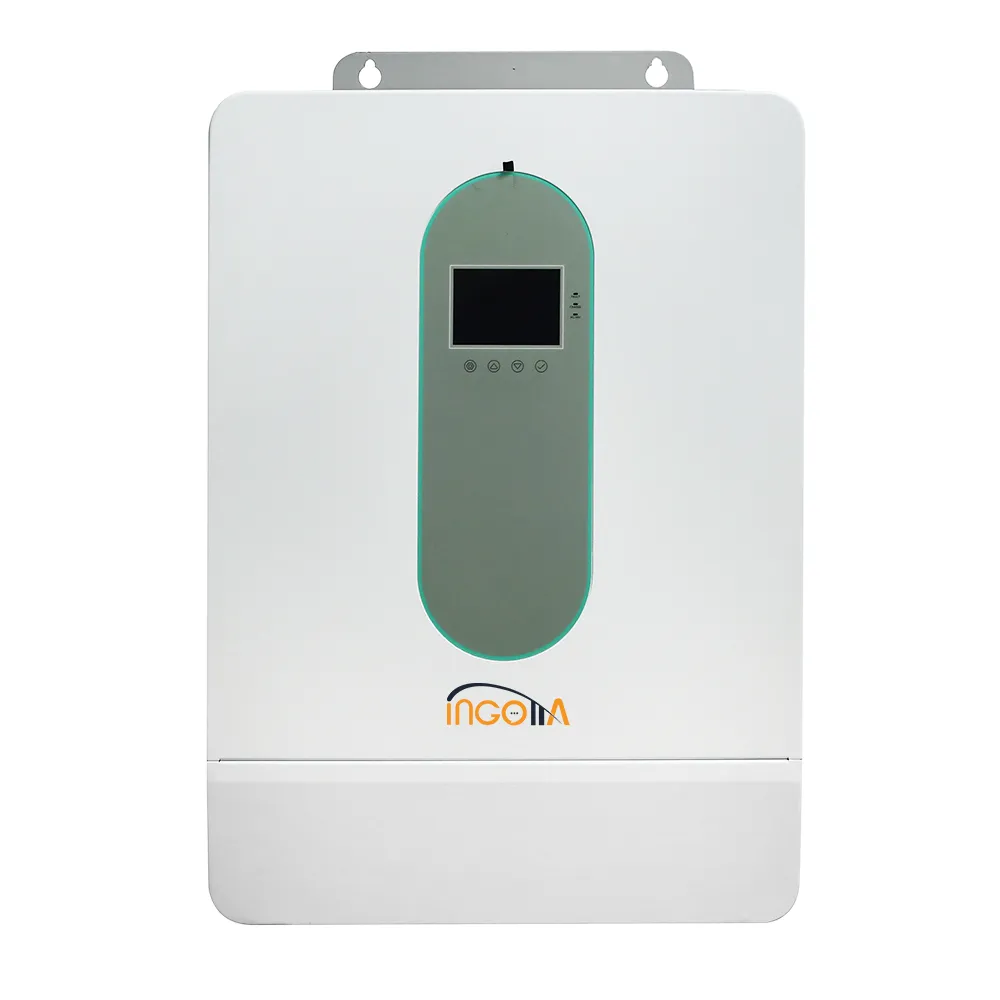

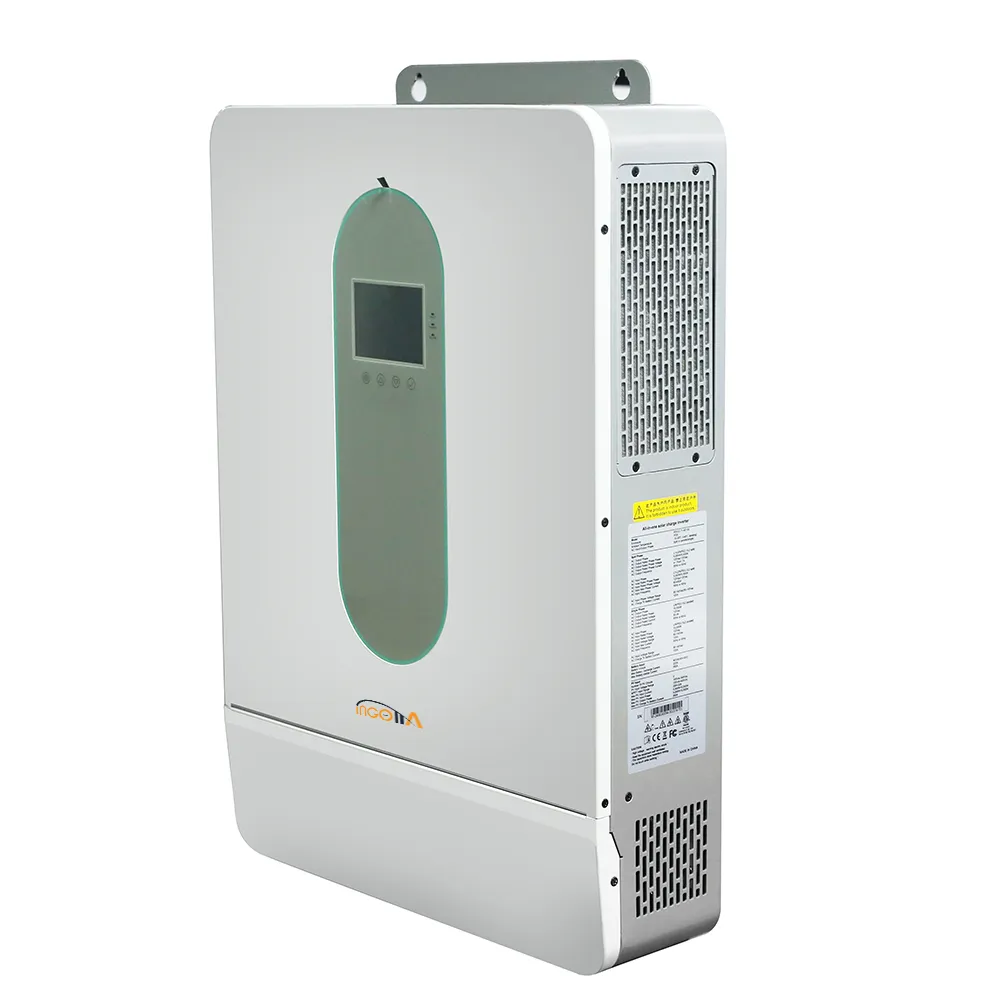

ISGC-T series Split Hybrid solar Inverter
ISGC-T series
Split Hybrid solar Inverter, output power up to 10KW, AC input 120V, can output 120V and 240V AC power, built-in dual MPPT, maximum charging current up to 200A. Built in UPS function, inverter mode switching time is 10MS.- Pure sine wave waveform. Communication output 120V/240V
- Dual MPPT, efficiency up to 99.9%
- Compatible with gel. AGM。 flooding. Sealed lead-acid and lithium batteries
- Comprehensive protection
- Exclusive lithium-ion battery BMS dual activation
- Comfortable installation and debugging
Split Hybrid solar Inverter Detail
| Model | ISGC-T-4880 | ISGC-T-48100 | CAN BE SET |
| INVERTER OUTPUT | |||
| Rated Output Power | 8,000W | 10,000W | |
| Max.Peak Power | 16,000W | 20,000W | |
| Rated Output Voltage | 120/240Vac(L1/L2/N/PE split phase) | Y | |
| Load Capacity of Motors | 5HP | 6HP | |
| Rated AC Frequency | 50/60Hz | Y | |
| Waveform | Pure Sine Wave | ||
| Switch Time | 10ms(typical) | ||
| Parallel capacity | / | ||
| BATTERY | |||
| Battery Type | Li-ion / Lead-Acid / User Defined | Y | |
| Rated Battery Voltage | 48Vdc | ||
| Voltage Range | 40-60Vdc | Y | |
| Max.MPPT Charging Current | 200A | Y | |
| Max.Mains/Generator Charging Current | 100A | 120A | Y |
| Max.Hybrid Charging Current | 180A | 200A | Y |
| PV INPUT | |||
| Num. of MPP Trackers | 2 | ||
| Max.PV array power | 11,000W | ||
| Max.input current | 22/22A | ||
| Max.Voltage of Open Circuit | 500Vdc | ||
| MPPT Voltage Range | 125-425Vdc | ||
| MAINS / GENERATOR INPUT | |||
| Input Voltage Range | 90-140Vac | ||
| Frequency Range | 50/60Hz | ||
| Bypass Overload Current | 63A | ||
| EFFICIENCY | |||
| MPPT Tracking Efficiency | 99.90% | ||
| Max. Battery Inverter Efficiency | 92% | ||
| GENERAL | |||
| Dimensions | 620*435*130mm(2*1.4*0.4ft) | ||
| Weight | 20kg(44lb) | 21kg(46.3lb) | |
| Protection Degree | IP20，Indoor Only | ||
| Operating Temperature Range | ‘-15~55℃,>45℃ derated | ||
| (5~131℉，>113℉ derated) | |||
| Noise | <60dB | ||
| Cooling Method | Internal Fan | ||
| Warranty | 2 Years | ||
| COMMUNICATION | |||

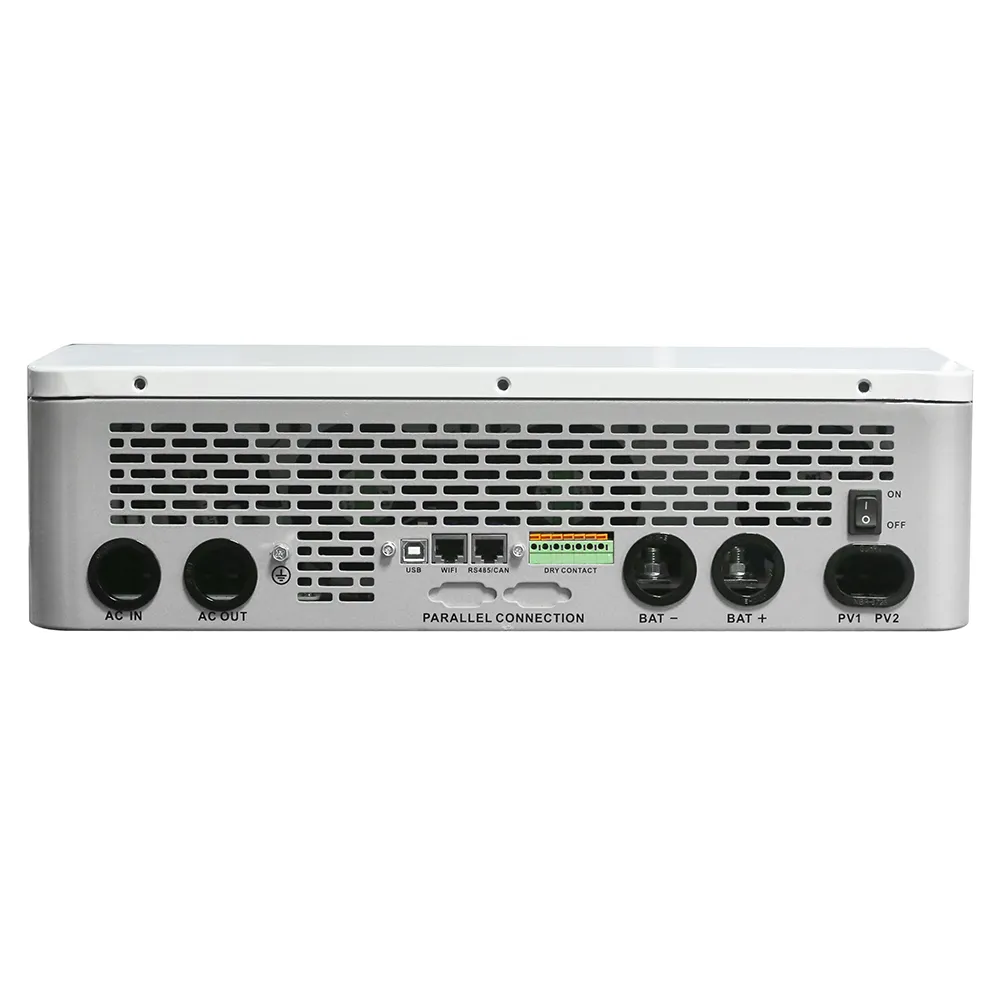

| Embedded Interfaces | RS485 / CAN / USB / Dry contact | Y | |
| External Modules (Optional) | Wi-Fi / GPRS | Y | |
| CERTIFICATION | |||
| Safety | IEC62109-1, IEC62109-2,UL1741 | ||
| EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B | ||
| RoHS | Yes | ||
